RLF 04
RLF 05
RLF 06
RLF 08
RLF 10
RLF 12

Technical Data

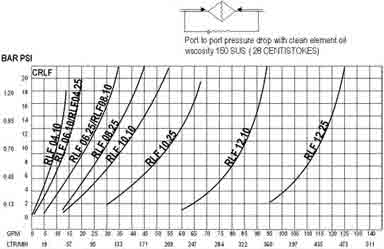

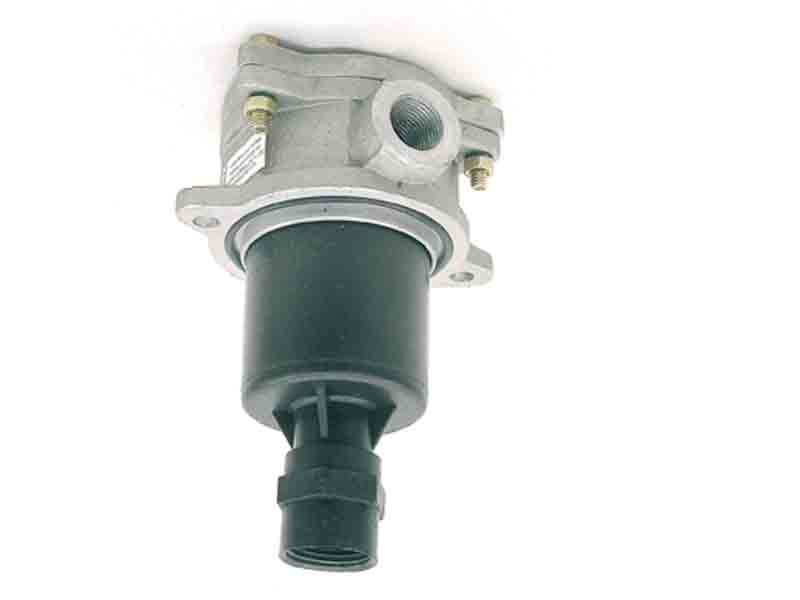

The RLF series of low cost return line filters is intended for direct mounting on hydraulic reservoirs. The low profile coupled with high flow ratings, helps in mobile installations besides stationary applications like machine tools, plastic machinery, etc.
It requires one inlet fitting and discharges directly into the reservoir. The outlet is suitable for hose connections. This results in considerable reduction in installation cost.
A permanent magnet inside the filter and 25-micron filtration are standard. Optional features include 10-micron filtration and visual clogging indicator as per order.

The elements are made from high-grade impregnated paper to ensure nominal desired micron ratings. Built in by-pass check valve preset at factory offers protection under clogged conditions.

Salient Features

• Direct tank top mounting.
• All aluminum body and cover.
• Filtration from 10 microns to 25 microns.
• For flows up to 450 lpm - 6 sizes.
• Low installation cost.
• 10 BAR maximum pressure.
• Interchangeable elements with competitive models.
• Visual mechanical clogging indicators.
• Easy replacement of cartridge without disturbing plumbing.
• With by-pass check value.
• Easy installation.
• Low profile tank top assembly.
• Generous filtration area for longer intervals between cartridge changes.
• Built-in strong ferrite magnet keeps ferrous particles out of the system.
