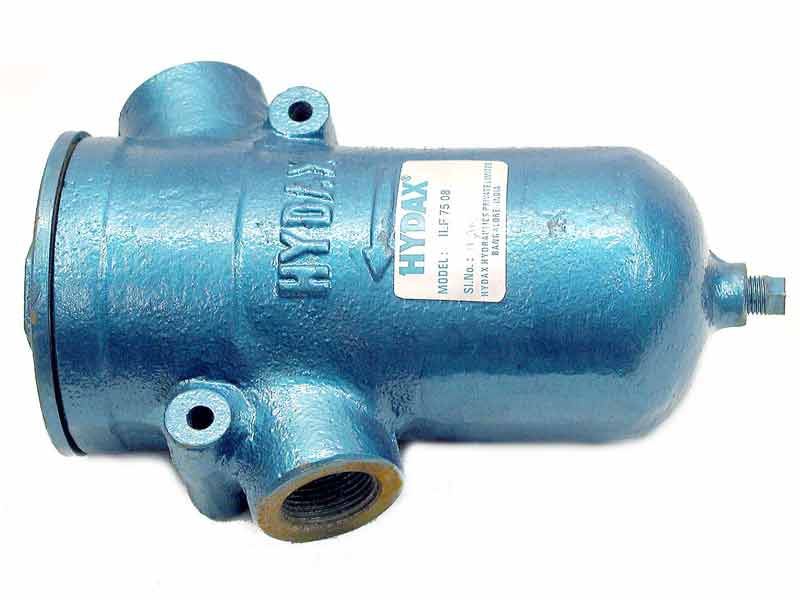

The Inline Filter is designed for use with all types of mineral and petroleum-based hydraulic fluids and is available for flows of up to 75 LPM. It can be connected anywhere in the return line of hydraulic systems.
The high-grade aluminum body and cast iron cover withstand higher pressure than normal return line filters. The built-in by-pass valve opens when the filter element is clogged. A permanent magnet inside the filter and 25 microns filtration are standard. (Optional is 10 microns)
Salient Features
- High-grade casting body and cover.
- Maximum rated flow of 130 LPM.
- Filtration up to 25 microns, 10 microns optional.
- Maximum operating pressure is 15 Kg/cm2.
- In-line mounting.
- Built-in check valve.

The In-line Filter model ILF-600 is an all-cast construction and is made from superior grade castings. These filters are rated for working pressures up to 20 kg/cm2 and the filtration is of 25 or 10 microns. The maximum flow capacity is 600 LPM with fluid viscosity of 80 SSU at 40° C. The Port connection is a 3" round flange. Adequate internal area is provided to minimize pressure drop. Strong ferrite magnets are provided inside the cartridge flow path to arrest ferrous particles.
|
| Model Code |
Filtration capacity |
Flow capacity |
Pressure Max.Kg/cm2 |
ILF-60-08-10 |
10 |
60 |
15 |
ILF-75-08-25 |
25 |
75 |
15 |
ILF-130-08-25 |
25 |
130 |
15 |
|
|
